Unboxing

Start by removing all of the components within the cardboard box.

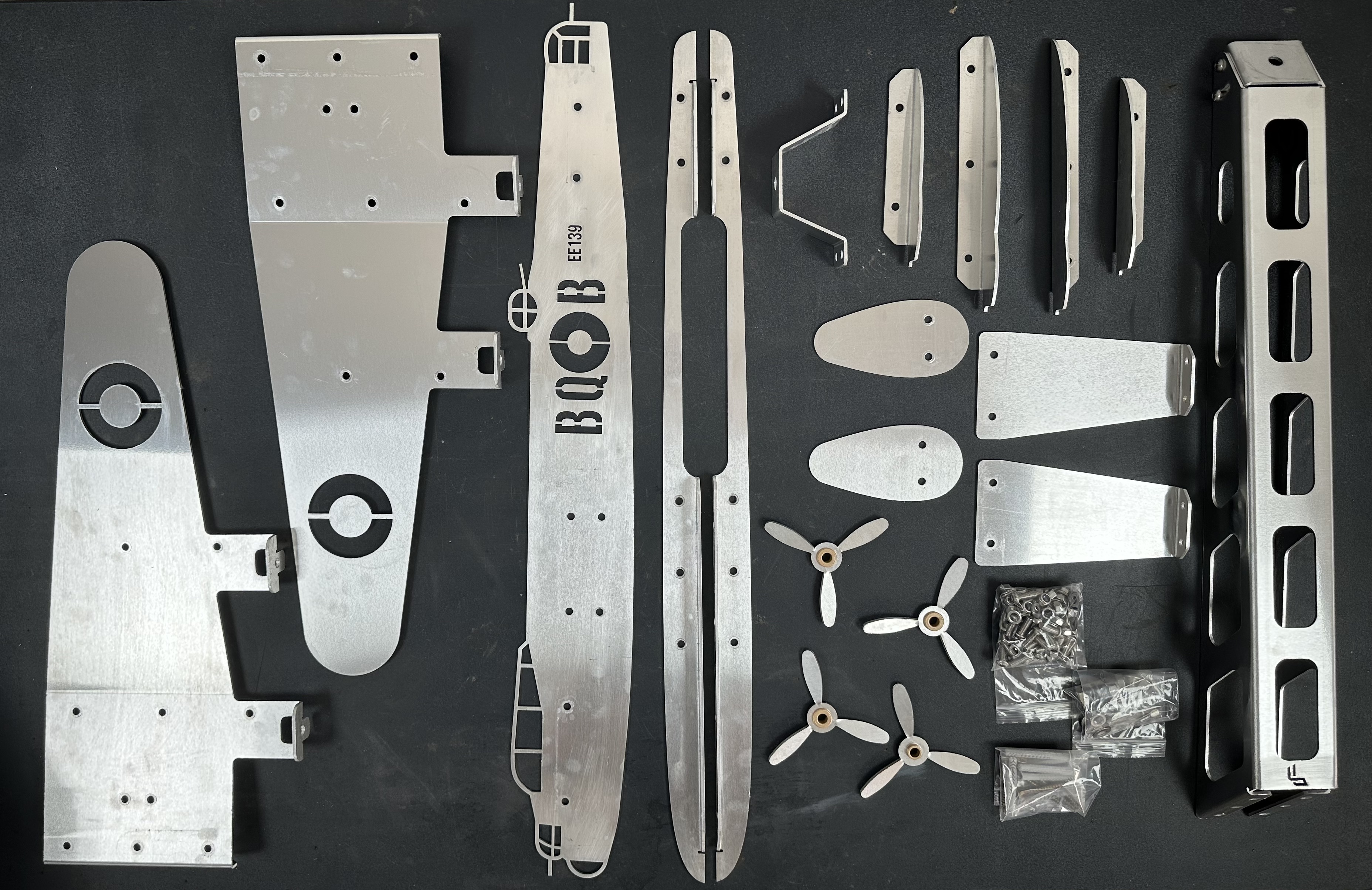

The box should contain:

• 1x Fuselage
• 2x Wing Brackets
• 2x Wings
• 1x Mounting Bracket
• 2x Tail Brackets
• 2x Tail Fins
• 2x Small Engines
• 2x Large Engines
• 4x Propellers (with olite brass bushes pre-installed)
• 1x Wall bracket
• 1x Pivot mount
• 1x Bag containing all M6 stainless fixings
  • 40x M6x16mm Socket Button Screws
  • 40x M6 Nyloc Locking Nuts
  • 40x M6 Flat Washers
• 1x Bag containing M8 and M10 stainless fixings
  • 4x M8x30mm Socket Button Screws
  • 8x M8 Flat Washers
  • 4x M8 Plain Nuts
  • 4x M8 Nyloc Locking Nuts
  • 1x M10x25mm Hex Head Screws
  • 2x M10 Flat Washer
  • 1x M10 Nyloc Locking Nut
• 1x Bag containing wall mount fixings
  • 6x 5x50mm Posi-Drive stainless Screws
  • 6x 6mm Wall Plugs

Tip

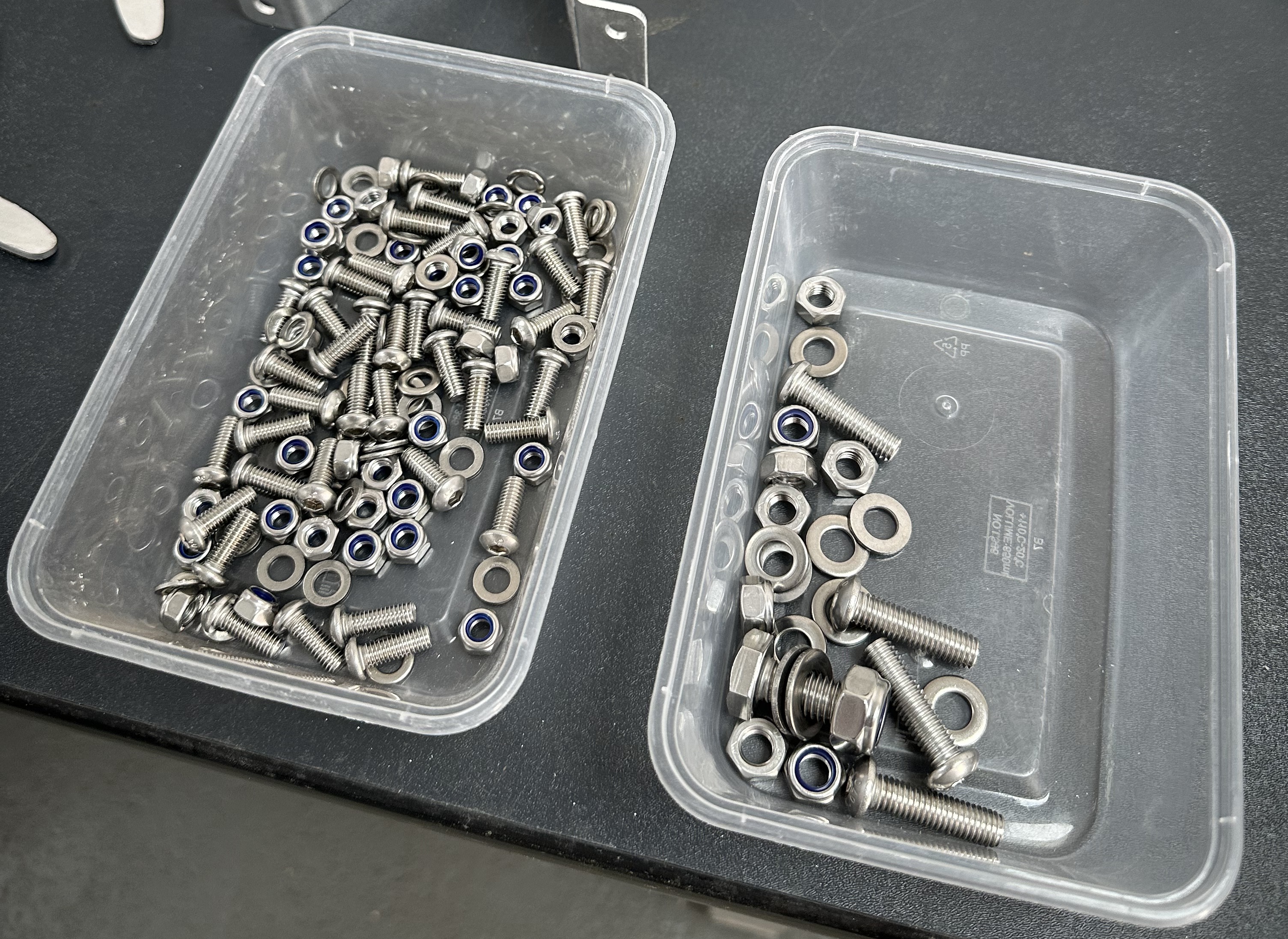

It's useful to empty the fixings into containers for easier access during assembly!

Surface Marks and Cleaning

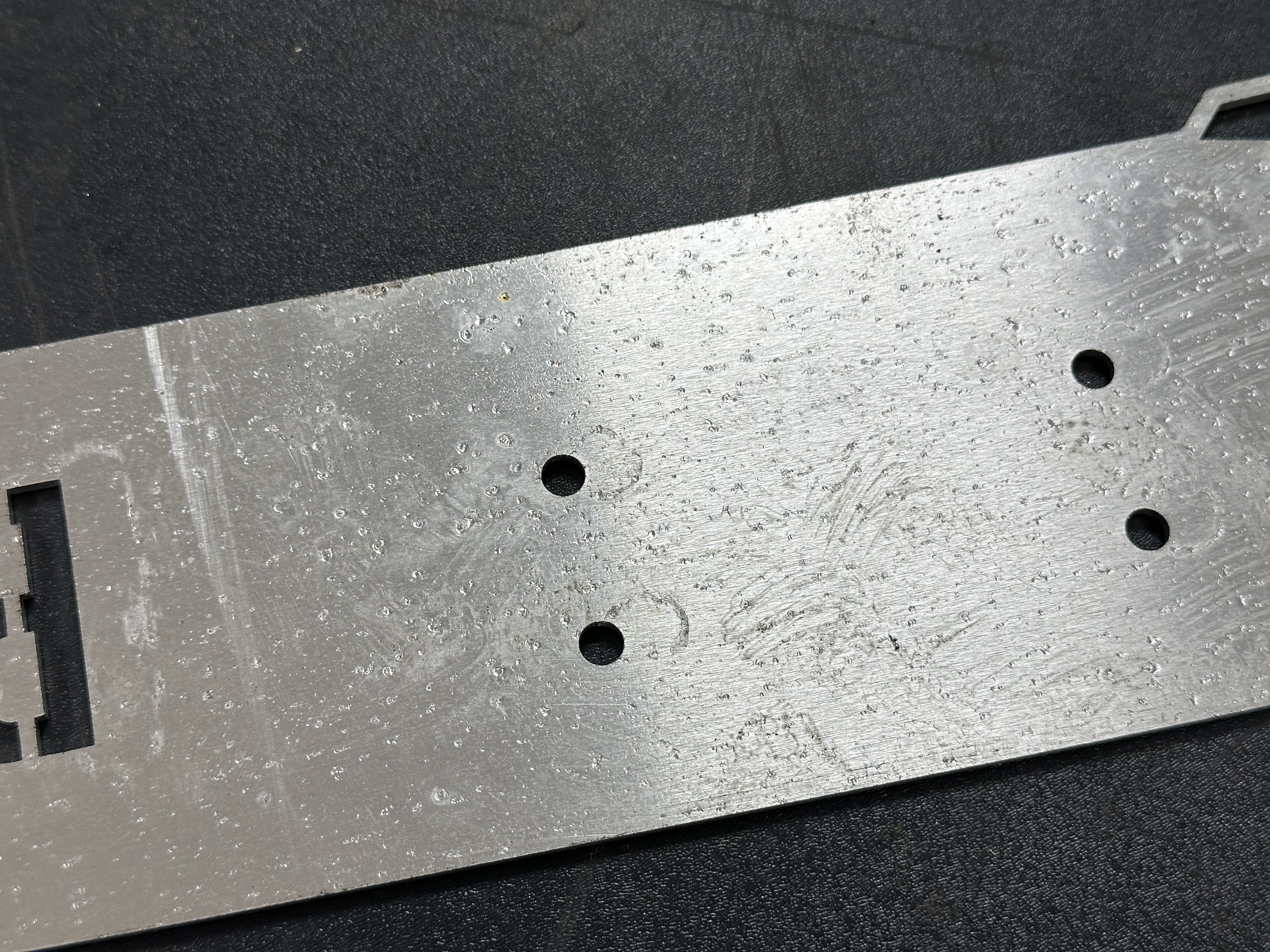

Some aluminium parts may arrive with minor surface scratches, discoloration, or a light protective oil coating. These marks are a byproduct of the laser cutting and bending process. We know they’re not ideal — but unfortunately, they’re unavoidable at this stage of manufacturing.

To clean and improve the finish:

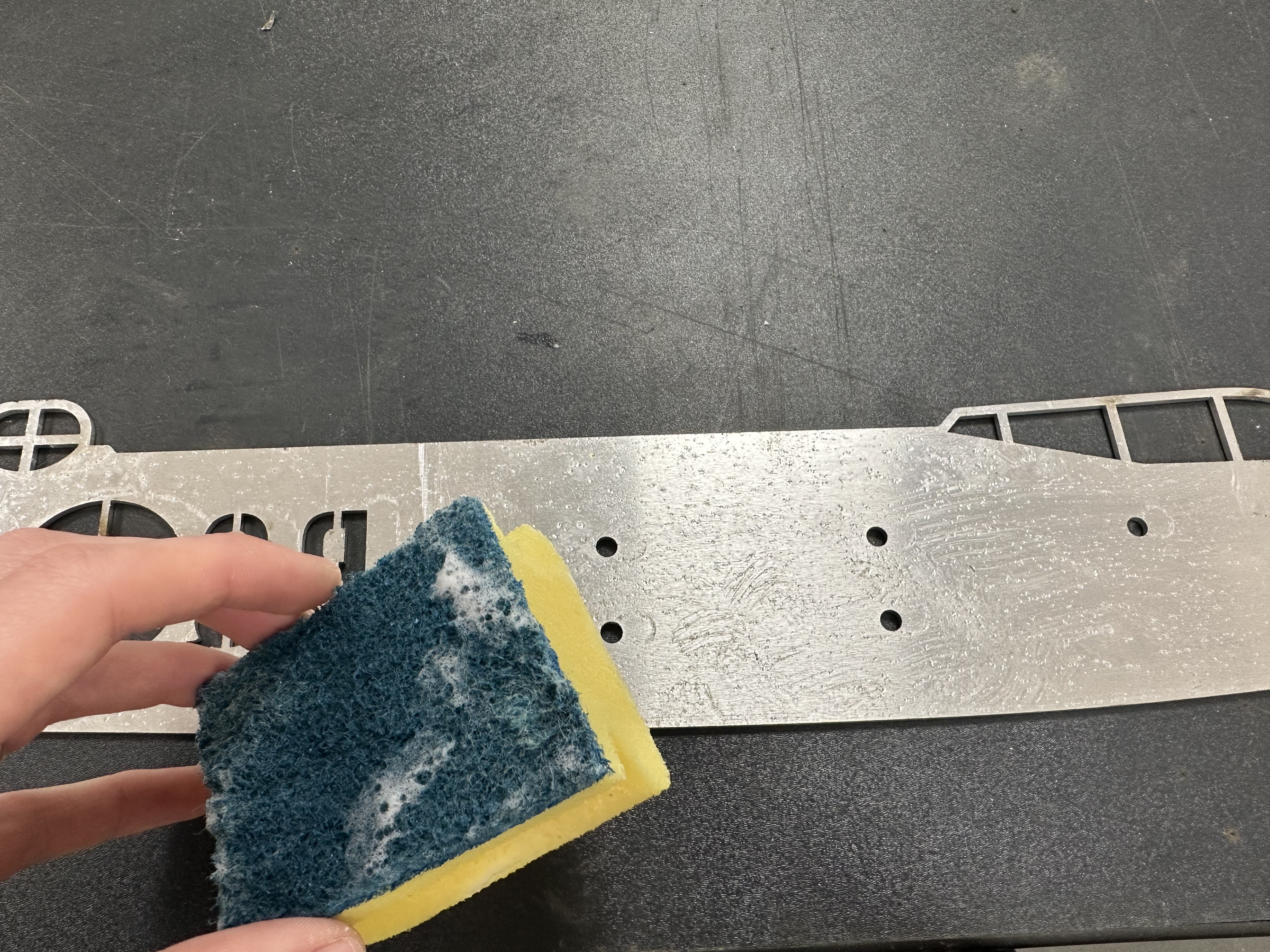

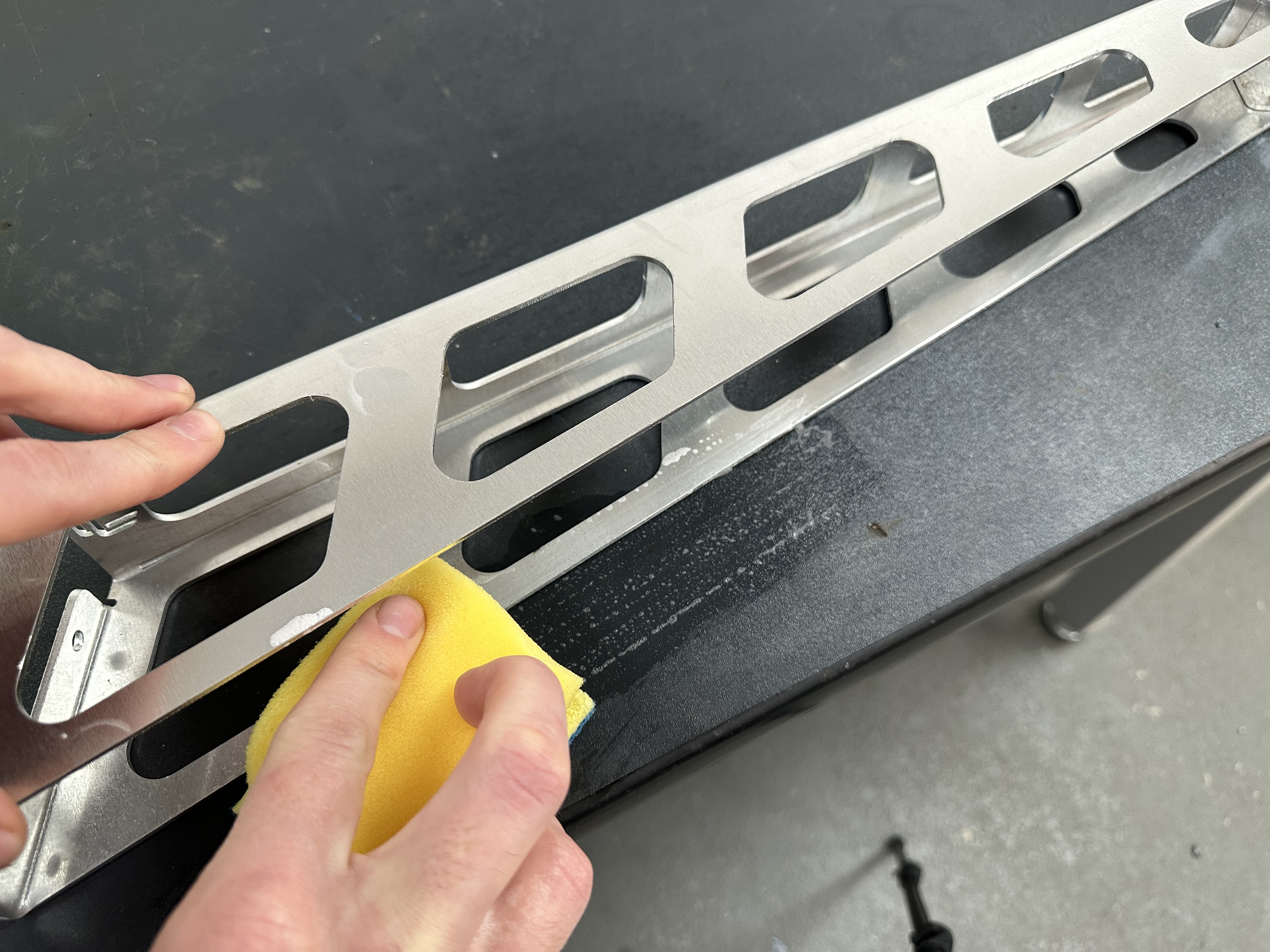

Use a sponge with warm, soapy water to remove any discoloration and oil residue.

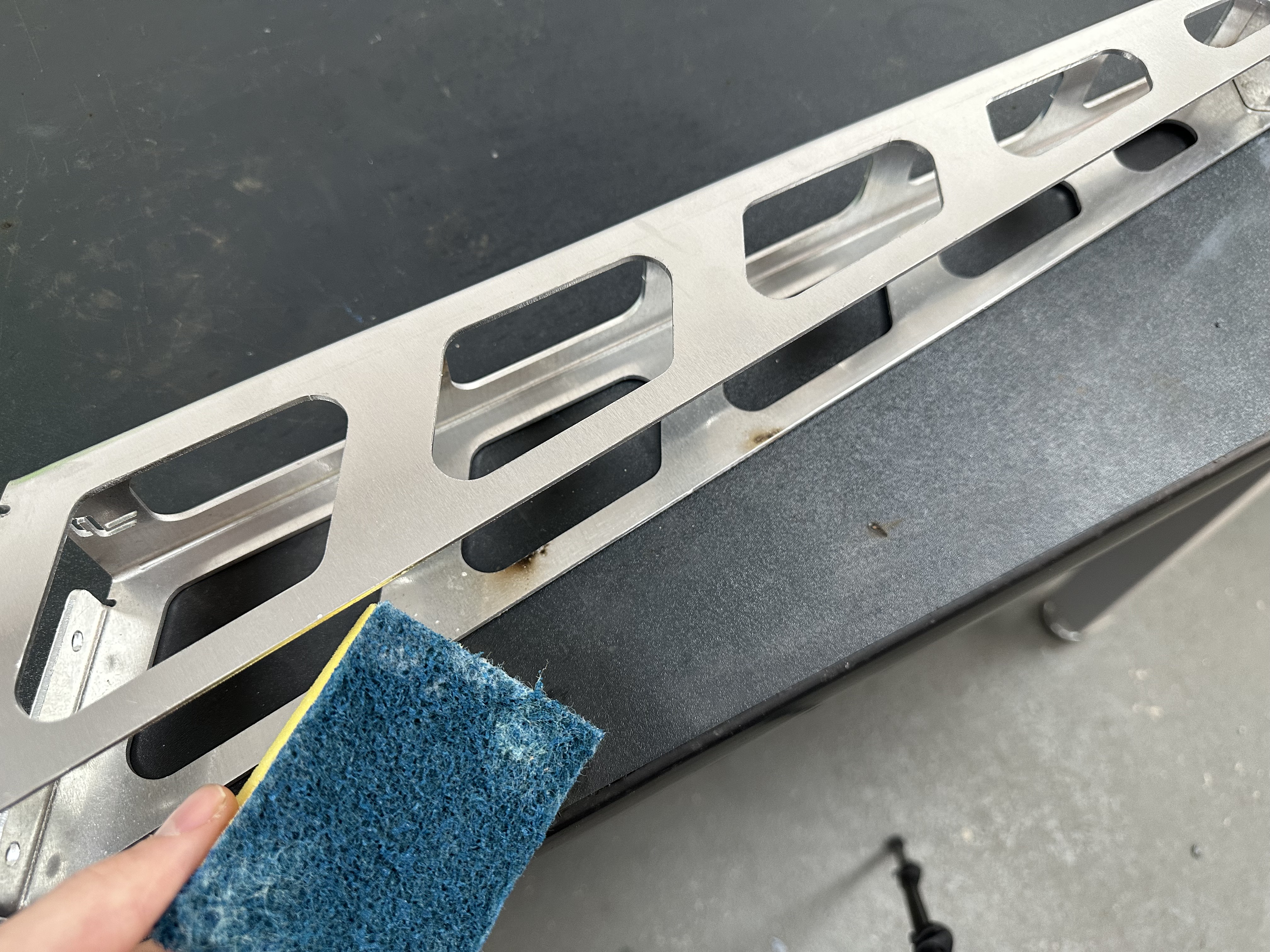

For surface scratches, gently polish the part using a Brillo pad or Scotch-Brite. This will help blend the scratches and improve the overall appearance.

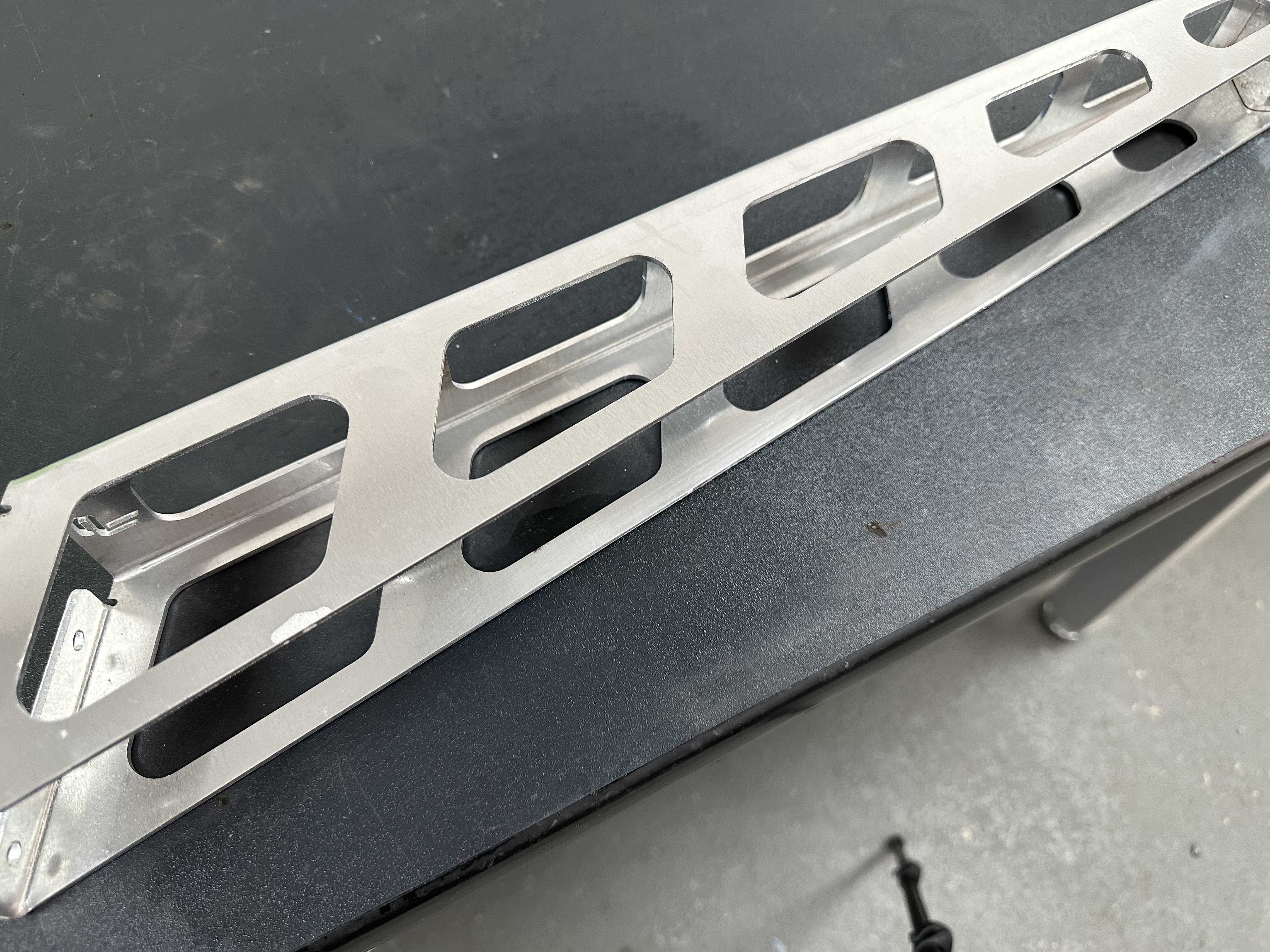

These steps are optional but can help improve the final finsh.

Missing something?

Reach out, we'll make it right.

Next steps

Next, you'll assemble the plane
